Group variables inside families

Objectives

We will learn how to:

create a family
gather variables into a family
make a variable within a variable, which turns this variable container into being a family

Prerequisites

We assume that Rougail’s library is installed on your computer.
It is possible to retrieve the current state of the various Rougail files manipulated in this tutorial step by checking out the corresponding tag of the rougail-tutorials git repository. Each tag corresponds to a stage of progress in the tutorial. Of course, you can also decide to copy/paste or download the tutorial files contents while following the tutorial steps.

If you want to follow this tutorial with the help of the corresponding rougail-tutorials git repository, this workshop page corresponds to the tags v1.1_020 to v1.1_022 in the repository.

git clone https://forge.cloud.silique.fr/stove/rougail-tutorials.git
git switch --detach v1.1_020

let’s recap how far we’ve come

We have this choice variable in its structure definition file:

The proxy_mode choice variable in the firefox/00-proxy.yml structure file

%YAML 1.2
---
version: 1.1

proxy_mode:
  description: Configure Proxy Access to the Internet
  choices:
    - No proxy
    - Auto-detect proxy settings for this network
    - Use system proxy settings
    - Manual proxy configuration
    - Automatic proxy configuration URL
  default: No proxy
...

In short, let’s describe our proxy_mode variable like this:

proxy_mode

Type:: choice
Default:: No proxy

Proxy mode’s settings

Now we will define new variables, and other structure definitions. For the sake of clarity, we will put the structure definitions in separate files. Please have a look at the file naming and organizing convention.

Here we made a firefox/00-proxy.yml structure file and we’re gonna make a new structure file named firefox/10-manual.yml:

.
└── firefox
    ├── 00-proxy.yml
    └── 10-manual.yml

Creating a new family

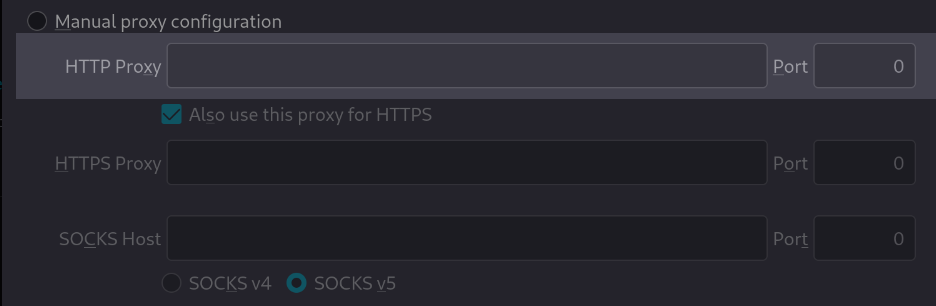

Let’s create a family named manual which obviously corresponds to the proxy’s manual configuration choice.

A family structure file description named manual in a firefox/10-manual.yml file

%YAML 1.2
---
version: 1.1

manual:
  description: Manual proxy configuration
  type: family
...

We can see that we have defined a family here, and this family is empty which means that this family is a container variable that contains no variable yet.

Warning

If a family is empty, we need to specify the family type here because if we don’t, the Rougail’s type engine will infer it by default as a variable. We have to force the family type inference.

It’s because we don’t have set any variable inside yet. When we will have a variable inside of this family, we will make a YAML block (to create a block in YAML, you just need to indent the lines) and the Rougail’s type inference engine will implicitely infer the variable’s container as a family type.

Or a sub family

For those who follow the tutorial with the help of the git repository

Now you need to checkout the v1.1_021 version:

git switch --detach v1.1_021

sub family: A sub family is a family inside a family.

Creating a family hierarchy of families (family inside a family) is very easy:

A rougail structure description file with a hierarchy.

%YAML 1.2
---
version: 1.1

manual:  # Manual proxy configuration

  http_proxy:
    description: HTTP Proxy
    type: family
...

Download this file from the rougail-tutorials git repository

Here in our use case we used the short-hand declaration mode to declare our manual family:

manual:  # Manual proxy configuration

And the http_proxy family lives inside of this manual family. We therefore created a hierarchy of families.

Putting a variable inside of a family or a sub family

For those who follow the tutorial with the help of the git repository

Now you need to checkout the v1.1_022 version:

git switch --detach v1.1_022

We are going to put a variable inside of a family or a sub family

Let’s create a variable in the http_proxy family. This time, the type of this new variable is a domainname type:

An address variable in the http_proxy family

%YAML 1.2
---
version: 1.1

manual:  # Manual proxy configuration

  http_proxy:  # HTTP Proxy

    address:  # HTTP address
...

Download this file from the rougail-tutorials git repository

Now that the address variable is declared, the operator can set a value to it.

In short, let’s describe our address variable like this:

address

Default:: None

This is the HTTP address of the proxy

Note

We encountered here a new type of variable there: the domainname type. There are a bunch of types available in Rougail.

We have reached the definition of the address in the http_proxy family; there will be other variables to define in this family.

Assigning a user value

Now we need to set a value for the address variable, otherwise we will get an error if we try to access this variable:

🛑 ERRORS
┗━━ The following variables are mandatory but have no value:
    ┗━━ Manual proxy configuration
        ┗━━ HTTP Proxy
            ┗━━ HTTP address

let’s set user values in a user data file

Here is a user data file sample:

A user file named config/03/config.yml with a value set for the address variable

---
manual:
  http_proxy:
    address: example.net

Download this file from the rougail-tutorials git repository

Let’s validate the consitency of the configuration:

rougail -m firefox/ -u yaml -yf config/02/config.yml

Everything is OK:

╭───────────────────── Caption ─────────────────────╮
│ Variable                           Default value  │
│ Undocumented but modified variable Modified value │
╰───────────────────────────────────────────────────╯
Variables:
┣━━ 📓 Configure Proxy Access to the Internet: No proxy
┗━━ 📂 Manual proxy configuration
    ┗━━ 📂 HTTP Proxy
        ┗━━ 📓 HTTP address: example.net ◀ loaded from the YAML file
            "config/02/config.yml"

Let’s recap about the user datas. We can see in this Rougail CLI output that:

the proxy_mode value is set by default by the integrator
the address value is has been set by an operator

let’s review the key points

Keywords

we know how to define variables inside of a family
we now know what a mandatory variable is and why it is necessary to assign values to the variables
we kwow how to set a variable’s user value
we have the big picture : the configuration, which is (the structure files + the user data files)

Progress

we have a family named manual and a sub family named http_proxy
And we have now two variables: proxy_mode and address.
